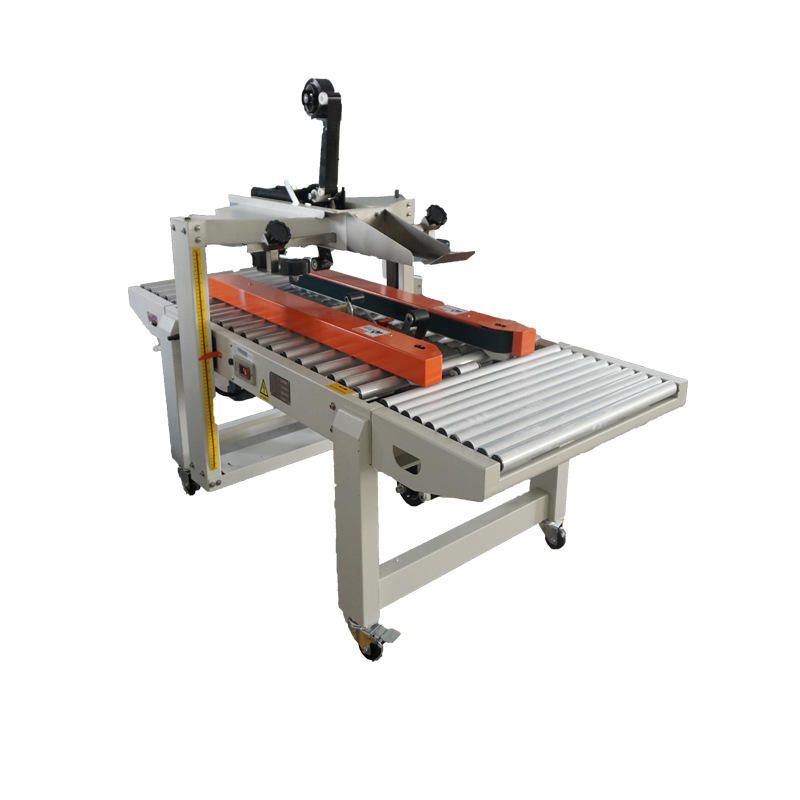

1 / 5Semi-Automatic H-Shaped Carton Sealer
A semi-automatic sealer that tapes cartons in an H pattern with two-side belt drive, for cartons from L260 × W200 × H180 mm to L700 × W500 × H500 mm.
Key features
- H-pattern taping
- Two-side belt drive
- 48/60/75 mm tape
- Cartons L260 × W200 × H180 to L700 × W500 × H500 mm
- 650 mm table height
Configuration, installation and the after-sales policy are explained during your consultation.
Specifications
Specifications
| Item | Value |
|---|---|
| Material | Iron |
| Sealing speed | 600boxes/min |
| Table height | 650mm |
| Tape width | 48/60/75mm |
| Drive type | Two-side Belt Drive |
| Applicable carton size range | Min:L260*W200*H180mm Max:L700*W500*H500mm |
Specifications are as stated by the manufacturer. Please confirm the exact configuration and specifications in a consultation.
